diy small cnc milling machine

diy small cnc milling machine
  • Продавец
  • Список ценUS $1320.00piece
  • Продажная ценаUS $1320.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (176)

Oписание продукта

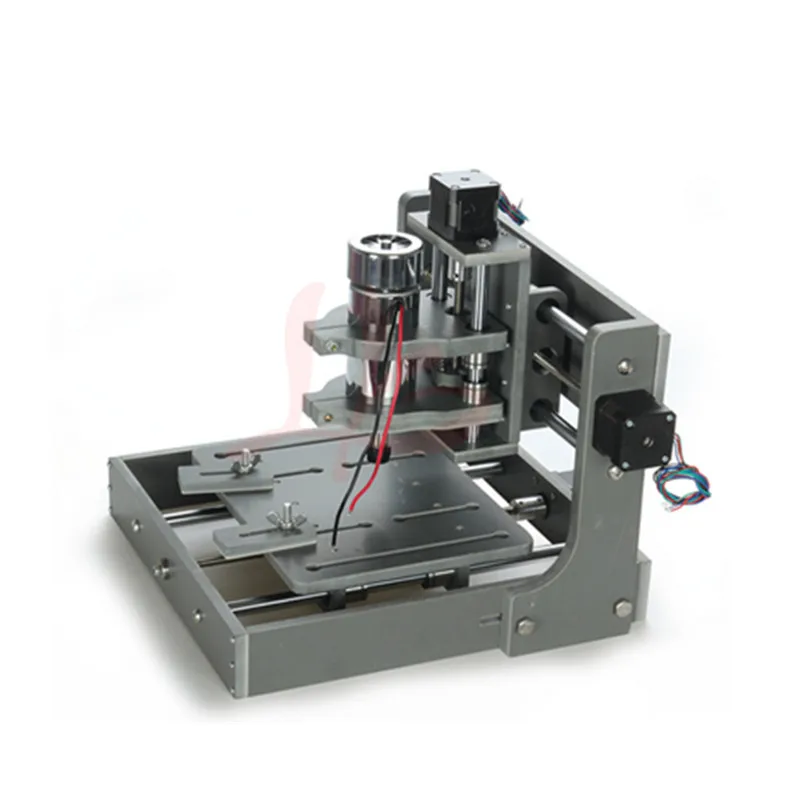

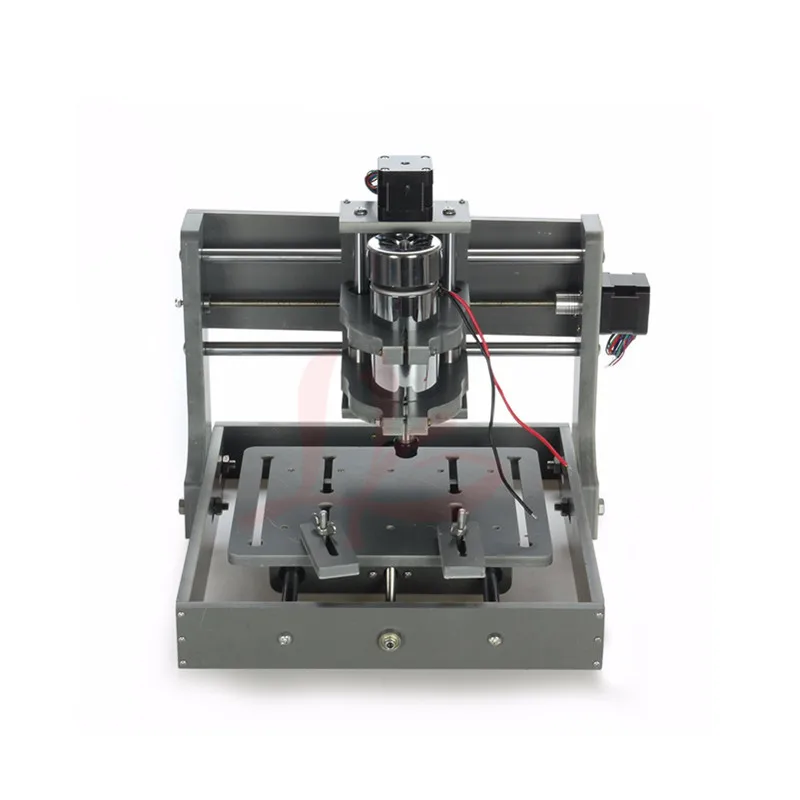

Small working area cnc milling machine LY 2020 cnc machine with Parallel port



This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
More Precise Stepping Motor
The engraving process is visible as controlled by computer
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty

Technical Parameters


DIY 2020




only LPT










LPT port

LPT+USB port

Spindle Motor:










Machine Dimensions


Table structure

10mm PCB

Lead screw

M8 threaded stainless steel Lead screw triangle

Engraving area


Spindle motor

300W high-speed (10,000 rpm)

Collet type

ER11,1/8"(3.175mm) Collet

Stepper motor and drive

NEMA17 Stepper motor

Current of Driver


Resolution ratio


MAX. moving speed

4000 mm/min

Software Compatability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt



1. Support MACH3 System.

2. Suitable for engraving PVC PCB wood materials.

3. Working table size 200 * 200 * 70mm

4. Equipped with a 300W high-speed spindle

5. With English installation manual, simply operation

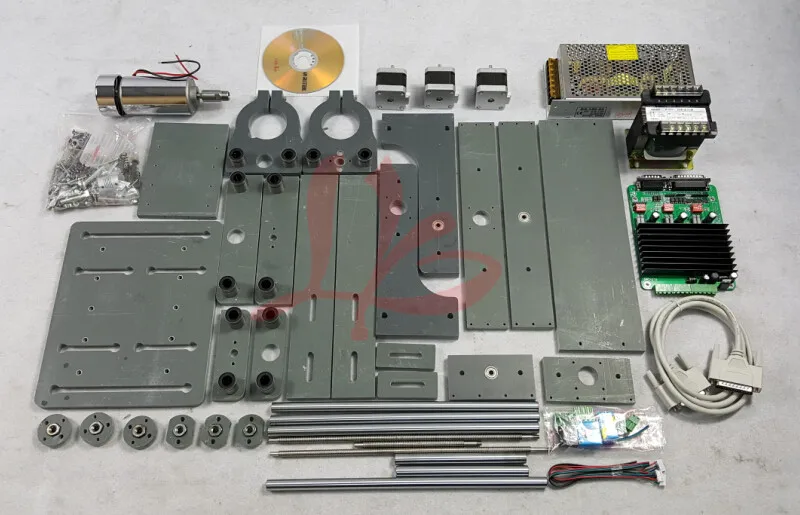

Packing list:

1pcs 2020 engraving machine

All parts of the mechanical parts, including :

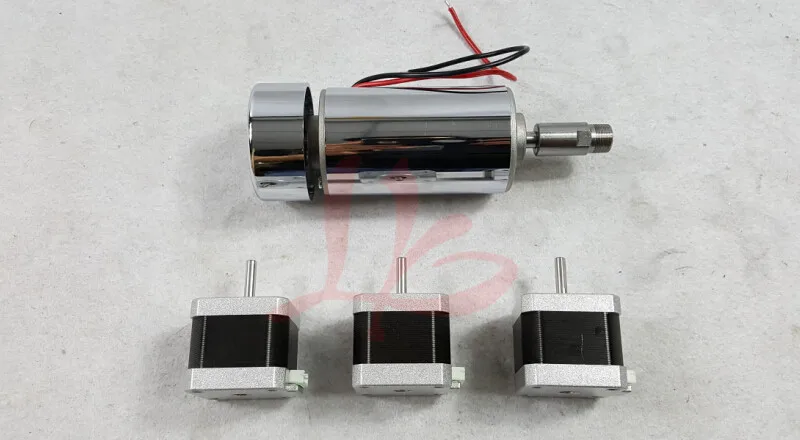

1pcs Spindle motor

3pcs Stepper motor

2pcs press plate

1pcs Information CD

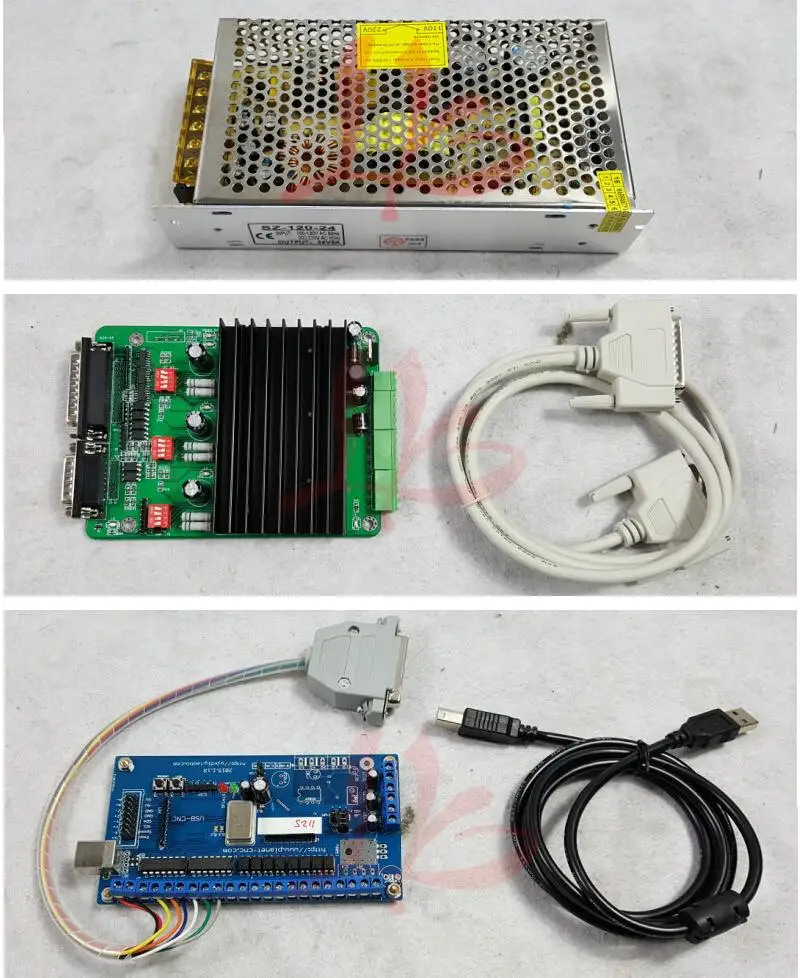

1pcs driver board

1pcs Parallel port lines

1pcs Switching Power Supply

1pcs Transformer and rectifier bridge

2pcs milling cutter


Product description:
Because it is DIY products, after received the goods, need DIY to assembly,THANKS!

DIY 2020-2 in 1 (3)

DIY 2020 (5)DIY 2020 (8)

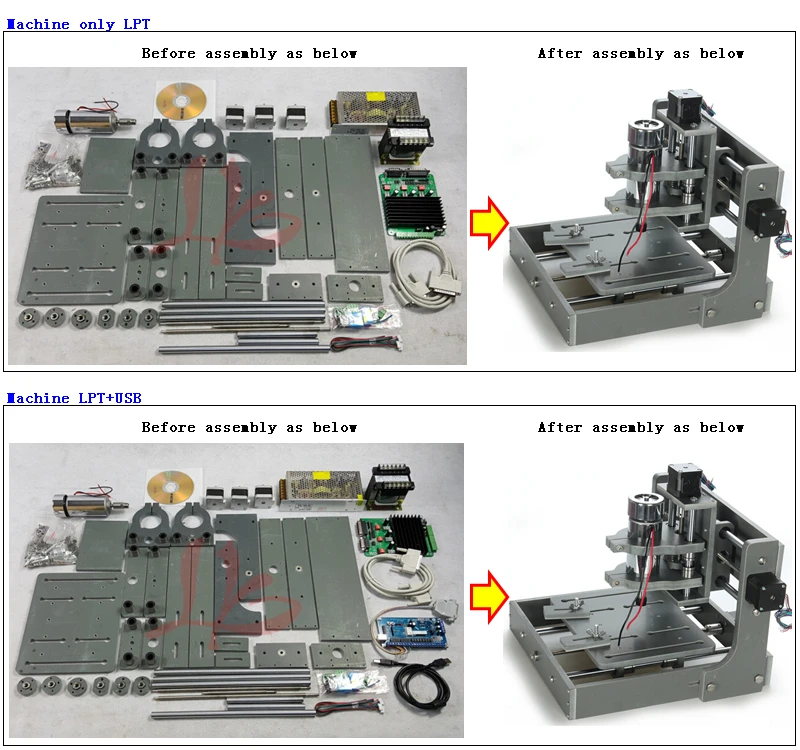

Parallel Port Packing :

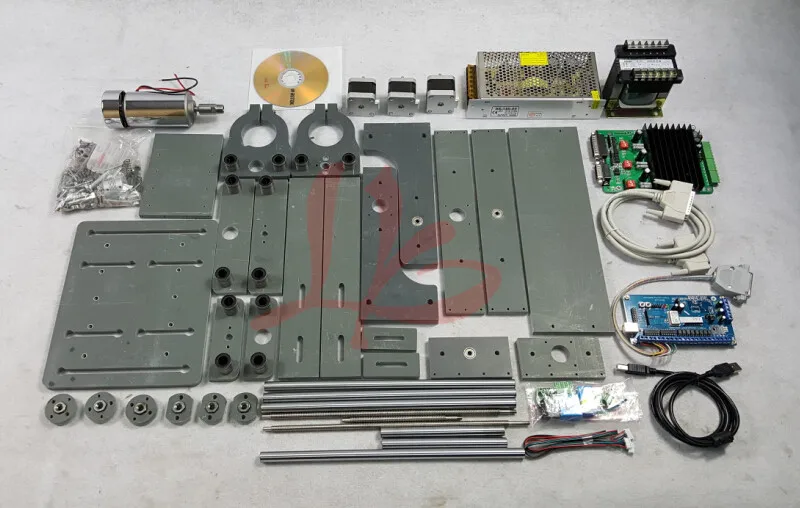

USB Port Packing :

DIY 2020 (6)
