FreeShipping door sensor switch 24G microwave probe Automatic access control sensor door sensor radar detector

FreeShipping door sensor switch 24G microwave probe Automatic access control sensor door sensor radar detector
  • Продавецbetances.us
  • Список ценUS $22.00piece
  • Продажная ценаUS $22.00piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,6 (199)

Oписание продукта

Product Description

Overview:

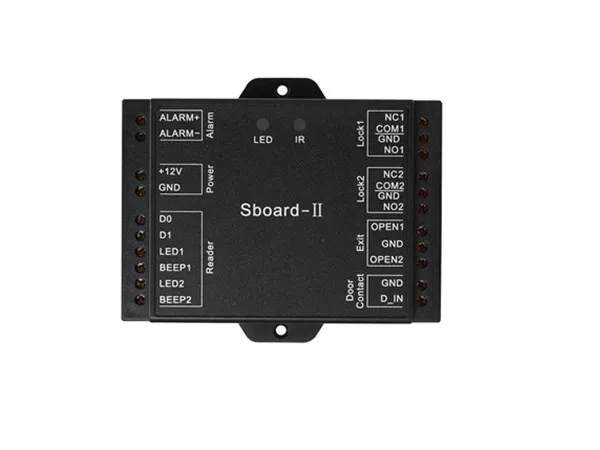

The ZOTER Sboard-II is a dual-relay door control panel, can work with any Wiegand 26~37 bits output reader. It uses Atmel microcontroller to assure stable performance, and equips with an infrared remote control and master cards for easy operation. The Sboard-II supports 2100 users, all user data can be transferred.
Features:
• 2,100 users, user data can be transferred
• Multi access modes: Card, Card or PIN, Card with PIN and multi Cards/PINs
• Can connect with any reader with Wiegand 26~37 bits output
• Can connect with any keypad reader with 4bits, 8bits (ASCII), or 10bits Virtual number output
• Support Master Card function
• Support set principal card

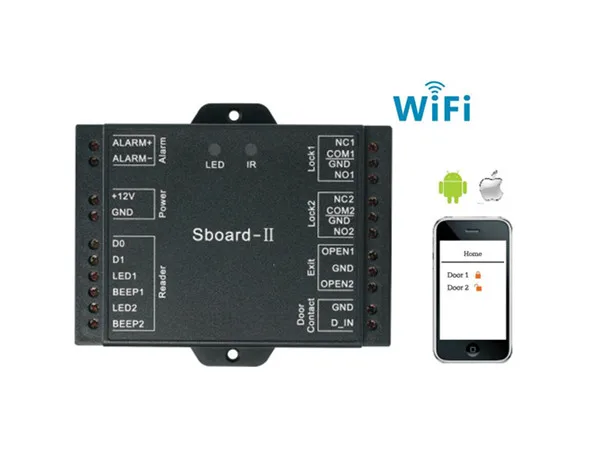

• Can communnicate with mobile by Wifi/GPRS
• Remotely open the door within your home network or remote from anywhere you can get internet access with your smartphone or tablet                                                                                                                                                                                                                                                                                            Specifications:                                                                                                                                            User Capacity:2,100
Zone 1:2,000
Zone 2:100
Operating Voltage:9~24V DC
Idle Current:<30mA
Idle Current (With Wifi):<100Ma
Relay:
Adjustable Relay Output Time:1~99 Seconds (5 seconds default)
Lock Output Load:5 Amp Maximum
Wiegand Interface:
Input:Wiegand 26~37 bits
Output:Wiegand 26~37 bits (for user transfer)
Environment:Indoor
Operating Temperature:-40 oC ~ 60 oC (-40 oF ~ 140 oF)
Operating Humidity:0~90%RH
Physical:ABS Shell
Colour:Black
Dimensions:L100 x W86 x D26(mm)
Unit Weight:110g
Shipping Weight:180g
Pictures:
