 New Arrial ! Fmuser DP-100 Exclusive 1/2 Half Wave FM Dipole Antenna High gain outdoor
Dipole antenna 88 to 108mhz for FM Transmitter up to 150w+8M Feeder Cable free shipping


21855717

dipole antenna is a radio antenna that can be made of aluminum, copper, and bronze  tube  with a center-fed driven element. It consists of two metal conductors of rod, oriented parallel and collinear with each other (in line with each other), with a small space between them.

The dipole antenna is a particularly important form of RF antenna which is very widely used for radio transmitting and receiving applications. The dipole is often used on its own as an RF antenna, but it also forms the essential element in many other types of RF antenna. As such it is the possibly the most important form of RF antenna.

A half-wave dipole antenna means the length of this dipole antenna is equal to a half-wavelength at the frequency of operation.

Electrical specification:
Frequency range: 88~108 MHz ( 1MHz stepping)
Input Impedance Impedance:50 ohm
VSWR <1.5
Gain:3.5 dBi
Polarization: Verticality
Maximum Power Input: 150W
Horizontal 3dB Beam Width:360 °
Vertical 3dB Beam Width:73 °
Mechanical Specifications:
Height: 990mm
Radiating Element Material:Aluminum Alloy
Connector:SL16-K
Holding Rod Diameter: Φ30~Φ40 mm

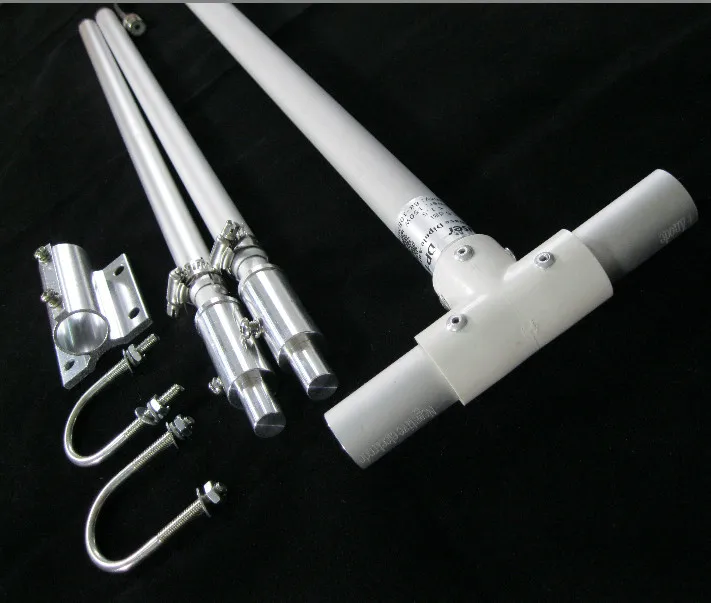

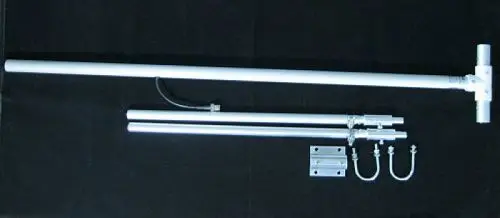

Package Include:
1* DP-100 Dipole Antenna
1* High quality 8meter BNC cable(If you need other connectors, please tell us before shipping, we also have NJ/TNC connectors)

Mechanical Specifications:
Height: 990mm
Radiating Element Material:Aluminum Alloy
Connector:SL16-K
Holding Rod Diameter: Φ30~Φ40 mm

Package Include:
1* DP-100 Dipole Antenna
1* High quality 8meter BNC cable(If you need other connectors, please tell us before shipping, we also have NJ/TNC connectors)

22400014


Why do we recommend this dipole antenna?


1).The half-wave dipole is very clear and easy for frequency adjustation, there are scales on the side bar of the antenna from which you can adjust the frequency from88~108 by 1mhz stepping.

2).The dipole is a simple antenna to construct and use, and many of the calculations are quite straightforward.

224477279

3.)The radiation pattern and high gain of dipole:

22611795

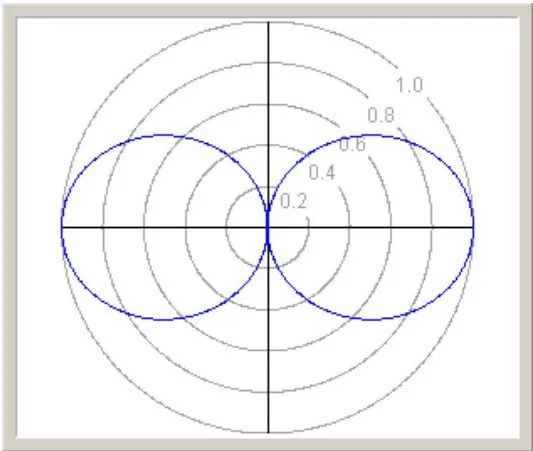

Radiation pattern of a half-wave dipole antenna,scale is linear.

226500248

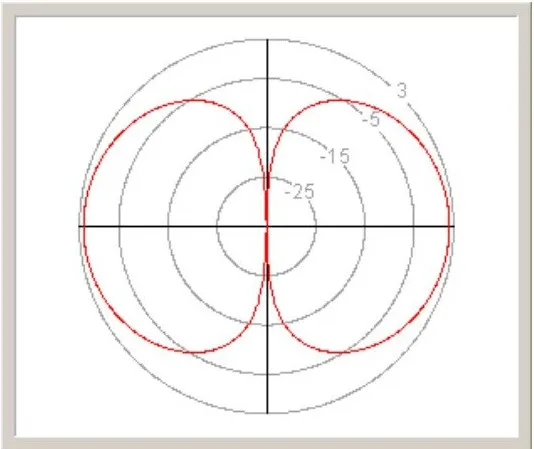

The Gain of a half-wave dipole (same as above). The scale is in dBi (decibels over isotropic).

227266545 (1)

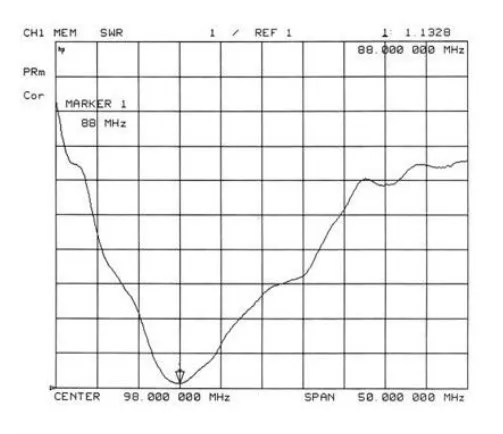

SWR diagram of the half wave dipole at 88Mhz

230122639 (1)

230366889

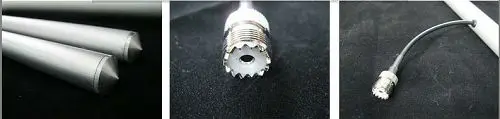

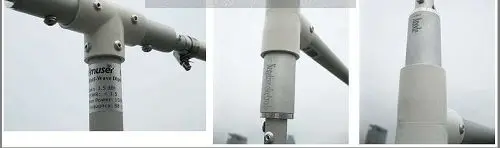

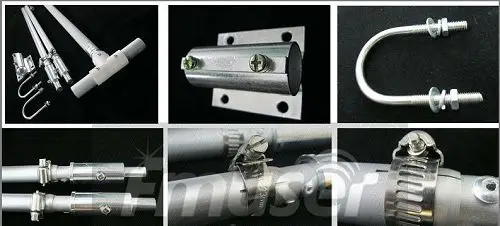

delicate and  excellent design



247388436 (1)

247522889

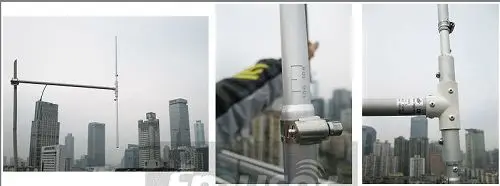

Attention: When setting the antenna, the "Anode" end should be face up, "negetive electrode" should be face down
