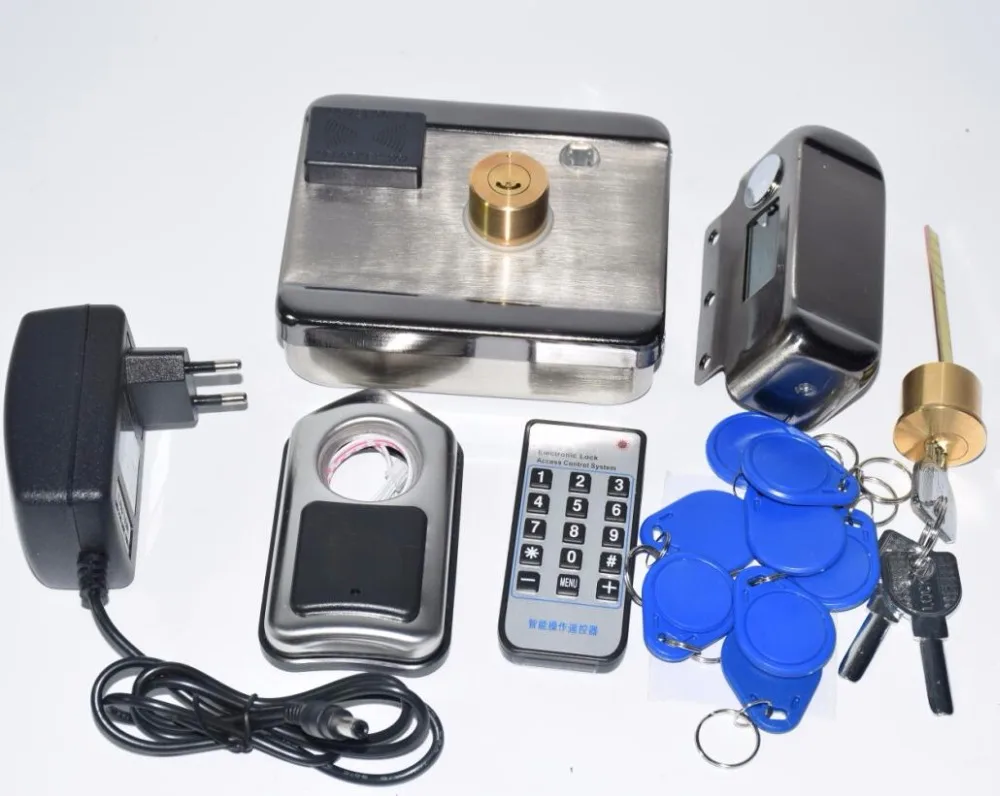

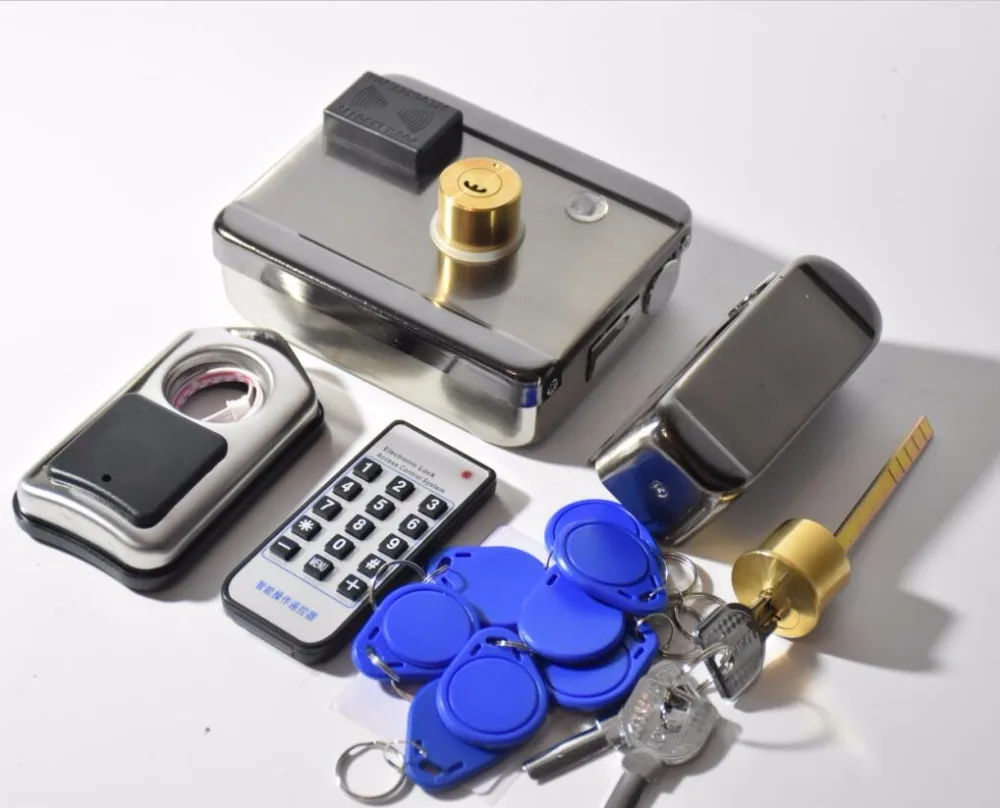

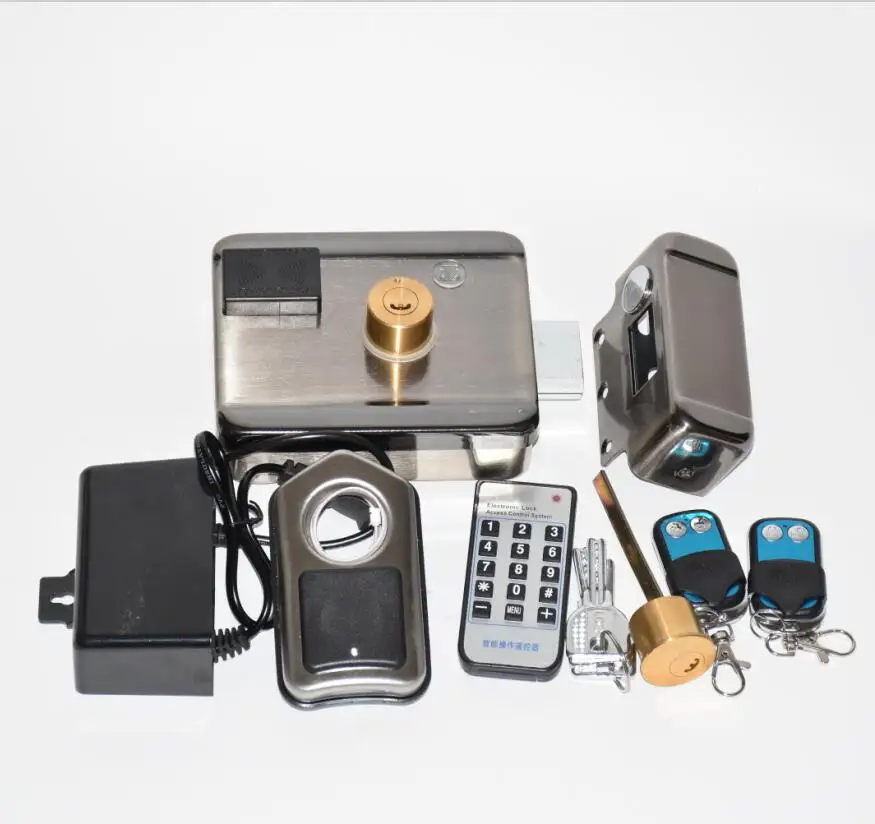

RAYKUBE Special Offer Access Control Kit Electric Strike Lock + Password Keypad RFID Reader Counter Strike

RAYKUBE Special Offer Access Control Kit Electric Strike Lock + Password Keypad RFID Reader Counter Strike
  • Продавецbetances.us
  • Список ценUS $41.69piece
  • Продажная ценаUS $41.69piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,8 (801)

Oписание продукта

remote controller instructions:(this remote programmer is only working when the door lock is powered by 12V power; for battery power, please use master card to program. Battery power cannot be useed for remote control programmer to register tags)
Notes: when register the tags with remote controller, please connect 12V DC power(12V for+, gold for-);
And for battery installation, please check the battery holder and pay close attention to - and +; 4 pcs 1.5V battery needed.
When power the lock with battery, the LED is not powered and this is a normal phenomenon; only readers are working. This is to save power.
this lock is automatic closing when the door is closing; and it is opened by cards or button;
and this lock, there are two versions: one is open inside by button/knob; one model is open by tags/keys only. when buying it, please choose it carefully.
​the external rfid reader is waterproof. but this lock is not waterproof.

Original Programming code: 6666

To enter the programming status, please press *6666# (each time when pressing the remote key, there will be a sound as DI; if no sound, this event is not effective and please repress it.)

LED will become red. And if the event is successful, the light will be green and red color. And there is no event input. The programming status will be end within 15 seconds.

1. Adding extra card/tag

Press 1# and swipe the card continuously(all the cards can be added at a time by swiping one by one). There will be 3 short beeps if successful. And press # as confirmation.


1. Deleting card/tag

Press 2# and swipe the card


2. Delete all users

Press 90 # 90  #


3. Changing programming code:

Press 18+#+ (new code,6 digits) # (new code) #

The code can be any number from 0000to 99999999


4. Exiting programming mode

press * to exit any programming mode
