Oписание продукта

Tips:
  • This 4G GPS Tracker is Special for Low Altitude Flight Tracking System, The upload interval time up to 1 second.
  • The 4G Band is : 800/850/900/1800/2100/2600MHz, if you\'re not sure or need other 4G band pls leave us the message.



Advantages:

  • Qualcomm 4G LTE chip solution
  • 4G LTE Frequency 800/850/900/1800/2100/2600MHz (other band is optional)
  • U-BLOX7 GPS chipset
  • Unique desig
  • Protocol is open and compatible other third party platform
  • White Label
  • IOS & Android support
  • 7*24 hours support
  • CE Certification



Product Video:

https://youtu.be/scXEk8GVtqA









1. Overview

MT600 is a new 4G GPS tracker support LTE network. It easy to track the vehicle/truck/assets on your phone or computer.



2. Functions

  • 4G LTE/WCDMA/UMTS Support
  • Real-time position inquiry
  • Vehicle trip history on web
  • SOS alarm
  • ACC switch alarm
  • Geo-fence alarm
  • External power cut off alarm
  • Remote cut off fuel/power (optional)
  • Vehicle towing alarm
  • Over-speed alarm
  • Backup battery low power alarm
  • Car battery low power alarm
  • High temperature alarm
  • Power saving mode
  • Mileage report



3. Applications

  • Yachts and Boats tracking
  • Vehicle/truck tracking
  • Asset security
  • Fleet Managemen

4. Specifications

Dimension 90(L)*70(W)*24(H)mm
Weight 138g
Input Voltage 12V-36V
Backup battery 700mAh/3.7V
4G Frequency bands
MT600-A:
FDD LTE: 700/850/1700/1900MHz
UMTS: 850/1700/1900MHz
GSM: 850/1900MHz

MT600-C:
FDD LTE: 900/1800/2100MHz
TDD LTE: 1900/2300/2500/2600MHz
UMTS: 900/2100MHz
GSM: 900/1800MHz

MT600-E:
FDD LTE: 800/850/900/1800/2100/2600MHz
UMTS: 850/900/2100MHz
GSM: 850/900/1800/1900MHz

Note: Select proper device according to your local 4G LTE frequency band.

GPS Chip U-BLOX7
GPS sensitivity -162dBm
Channel 56
Positioning Accuracy 10m
Cold Start 30s
Warm start 15s
Hot start 1s
Working temperature -20°C to +70°C
Humidity 5% to 95% non-concretion
Antenna external 4G/GPS antenna
Sensor 3D accelerometer sensor, temperature sensor
LED 4G/GPS/Charge
SIM Card interface Standard SIM
Certification CE

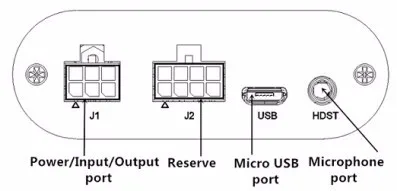

5. Hardware Description





6. Product installation



6.1 SIM Card installation

Pay attention to the following items before installing the SIM card:

  • Ensure the SIM card have enough balance
  • Ensure the SIM card enable caller ID and GPRS function
  • Ensure the SIM card disable PIN password and call forwarding function.
  • Power off the device before installing the SIM card

To install the SIM card, perform the following operations:

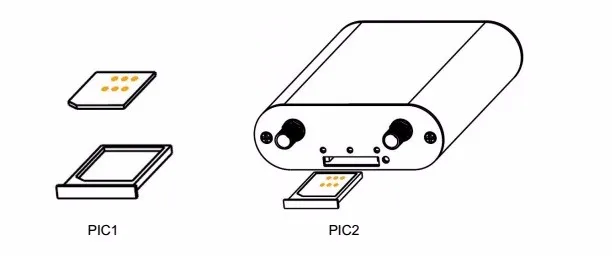

1. Insert the SIM card to the SIM card slot. Ensure the card chip facing up(see PIC1).

2. Put the SIM card slot back(see PIC2).

21

Note:

  • The device only support Standard SIM card;
  • If you want to take out the SIM card, use the tweezers to press the SIM card pop-up switch,the SIM card slot will pop up.



6.2 The Power wire connection

  • Red: connect to positive electrode of vehicle battery
  • Black: connect to negative electrode of vehicle battery
  • Green: connect to ACC of vehicle
  • Yellow: connect negative electrode of vehicle battery
  • White: connect to relay

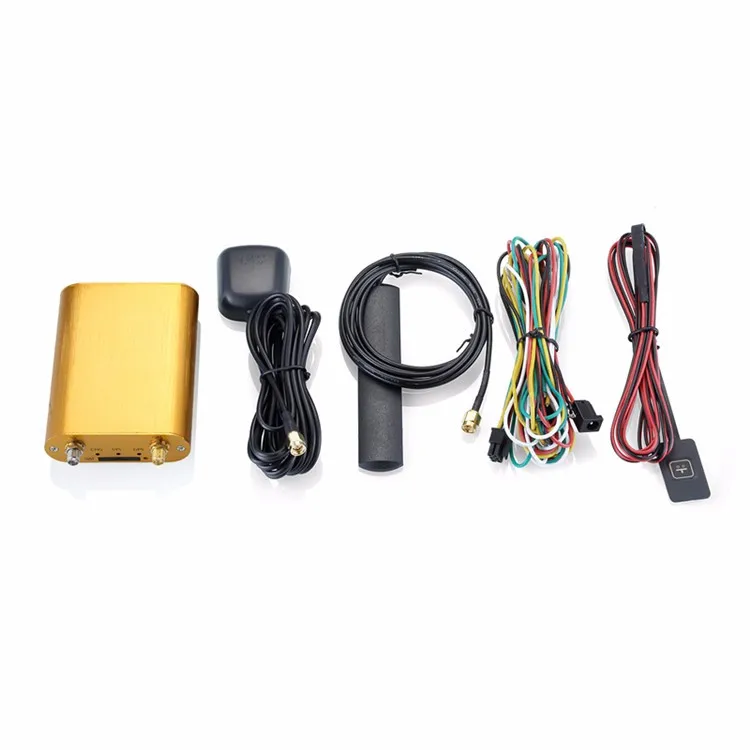

7. Product accessories

  • 1* MT600 4G GPS Tracker
  • 1* GPS Antenna
  • 1* 4G Antenna
  • 1* Power wire
  • 1* SOS Button
  • 1* SIM Card tray
  • 1* User Manua





8. How to Connect the server?

If you would like to connect the server, just need set the 803/804/805/807/809 command in the user manual, or contact us to get the setup video.

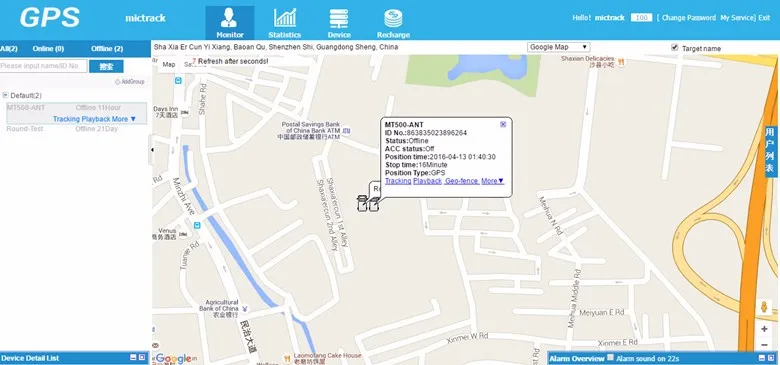

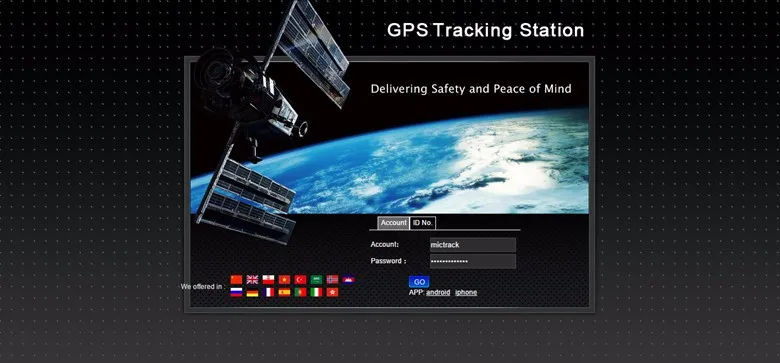

9. GPS Tracking Sytems

gps-tracking-systems-1

gps-tracing-systems-2

gps-tracking-systems-3



10. Certification:

CE_Certification_MT500
